On-Site Hydrogen Generator Solution:
HYSERVE & Technical Support for Hydrogen Stations
Compact & Efficient Hydrogen Production: HYSERVE for Hydrogen Economy
Overview
Introducing the HYSERVE Series by Daigas Group—a revolutionary on-site hydrogen generation solution designed to meet the growing demands of industries seeking efficient and sustainable hydrogen production. Our HYSERVE systems deliver ultra-high purity hydrogen (99.999%+) using natural gas or bio-methane as feedstock through the Steam Methane Reforming (SMR), and the Pressure Swing Adsorption (PSA) process, making them a versatile choice for a wide range of applications.
Why DGPS?
At DGPS, we lead the way in energy innovation with a commitment to sustainability and efficiency. Our HYSERVE series not only provides top-tier hydrogen generation solutions but also comes with the assurance of expert technical support. Partnering with us means investing in a sustainable future powered by reliable and advanced technology.
What DGPS can do

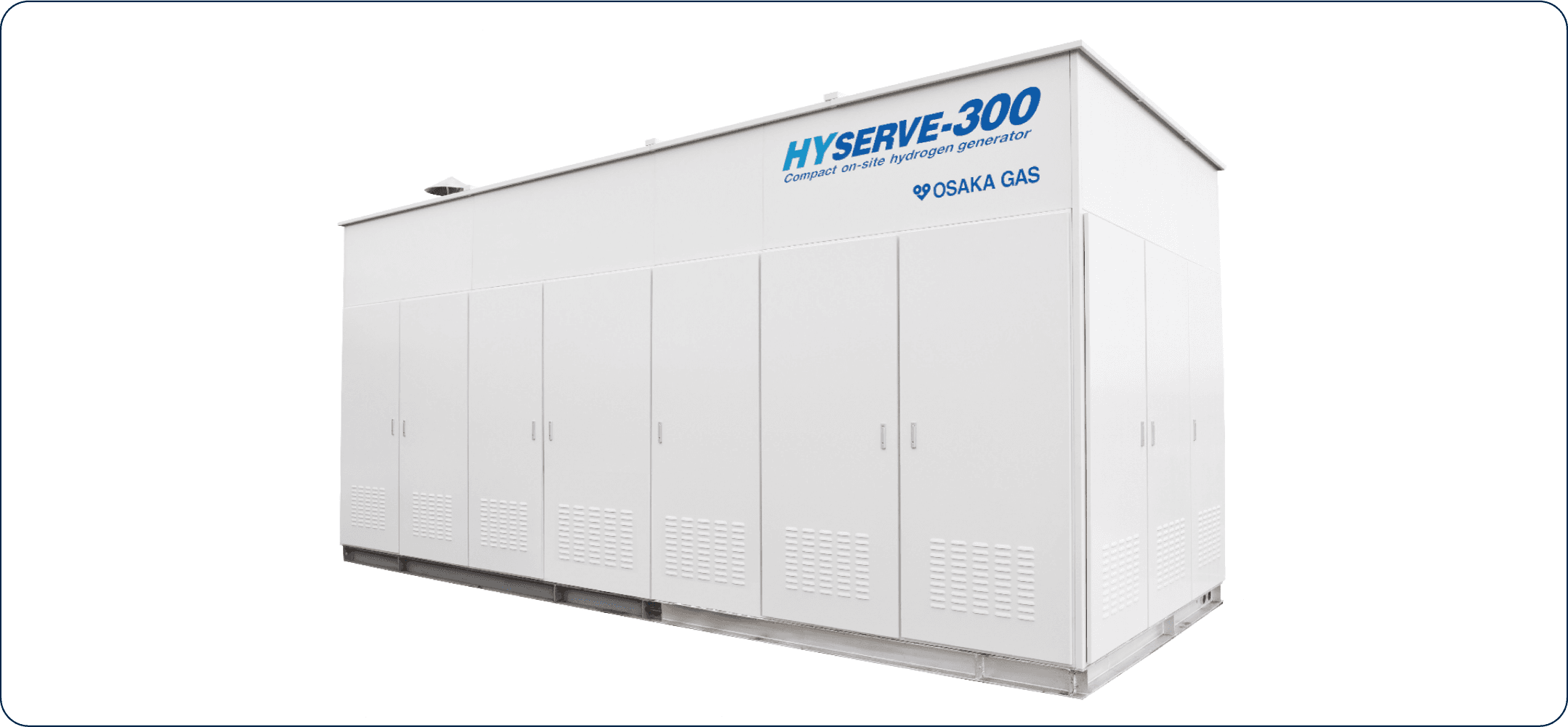

On-Site Hydrogen Generator Solution: HYSERVE
- High Purity Hydrogen: Achieve the industry standard with 99.999%+ pure hydrogen, ensuring superior performance across various applications.

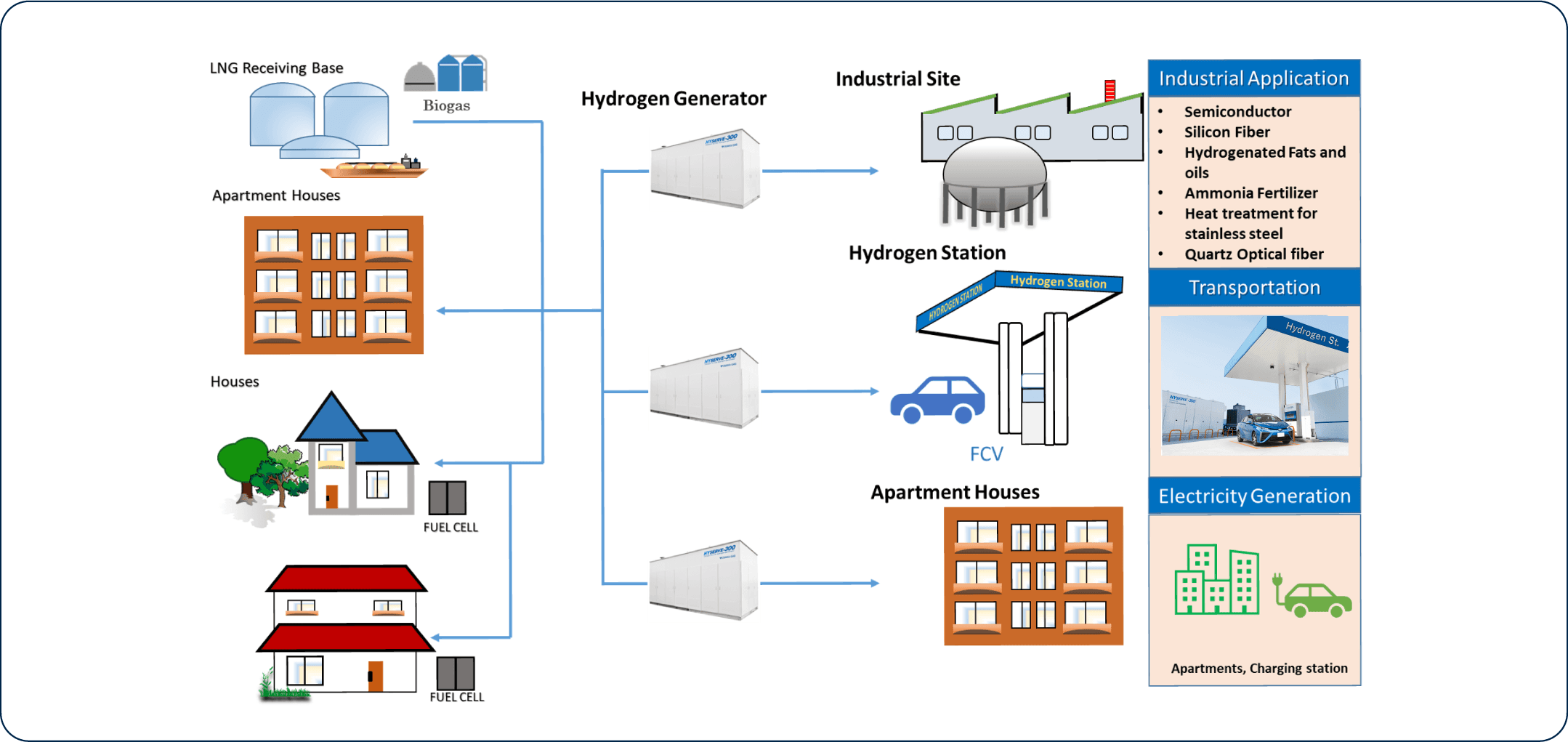

- Versatile Applications: Ideal for on-site hydrogen stations, and perfectly suited for use in the metals, electronics, and chemical sectors.
- Sustainable Solutions: Utilize natural gas or bio-methane, supporting your company's sustainability goals while maintaining cost-effectiveness.

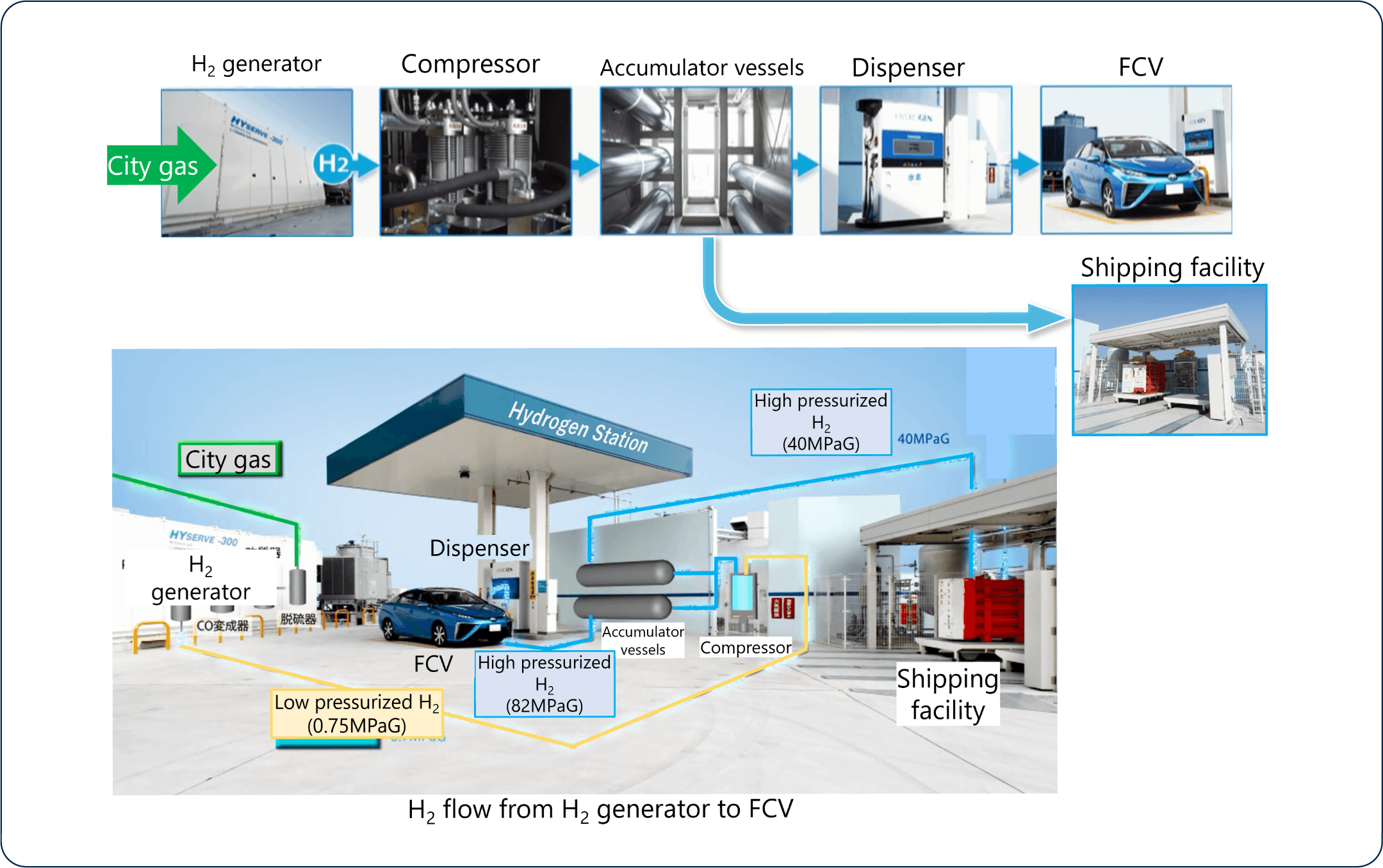

Technical Support for Hydrogen Stations
Beyond providing cutting-edge hydrogen generation technology, we offer expert technical support for design, construction and maintenance of on-site hydrogen stations. Our team of specialists will provide you with technical support throughout the entire process, starting from feasibility studies and design to construction and ongoing maintenance, ensuring your operations are seamless and efficient.
Features
Specifications
| Models | HYSERVE-30 | HYSERVE-100 | HYSERVE-300 |
|---|---|---|---|
| Feedstock | Natural gas, Propane | Natural gas | Natural gas, Propane |
| Hydrogen production capacity |
30Nm2/h | 100Nm2/h | 300Nm2/h |
| Hydrogen purity | 99.999 vol% or higher | ||
| Hydrogen supply pressure |
Up to 0.7 MPaG | ||
| Operability | Automated one-touch load adjustment (40-100%), standby operation | ||
| Unit size * | Unit package 3,600W×2,000L× 2,950H |
Unit package 5,300W×2,750L× 3,450H |
Unit package 9,700W×3,000L× 3,550H |
| Optional function | Remote monitoring system, etc. |
||
*Feedstock compressor unit, vacuum pump, pure water device, cooling tower, IA, N2 supply unit, control panel, etc.
*Unit sizing may be subject to change

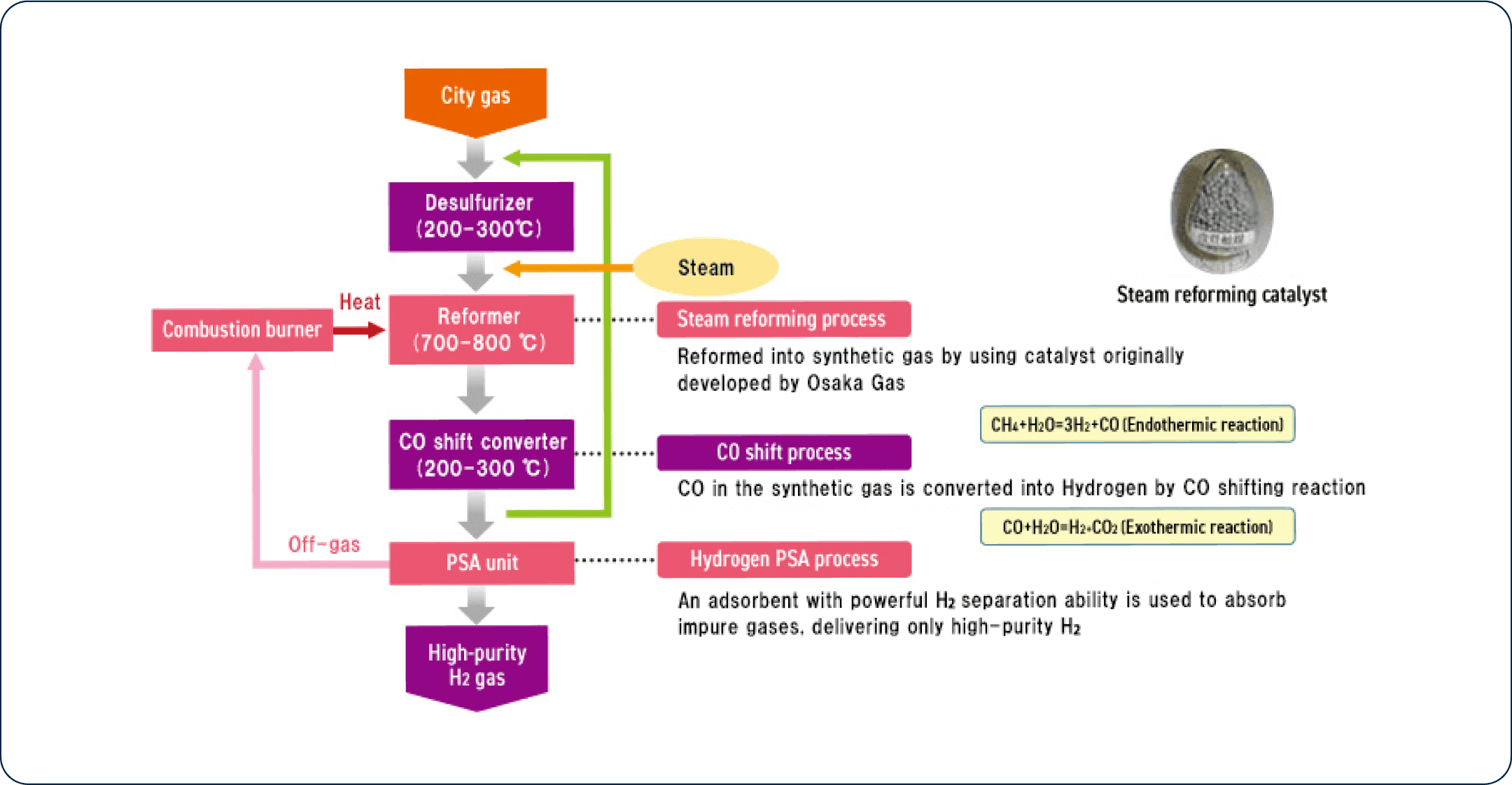

Operation Flow

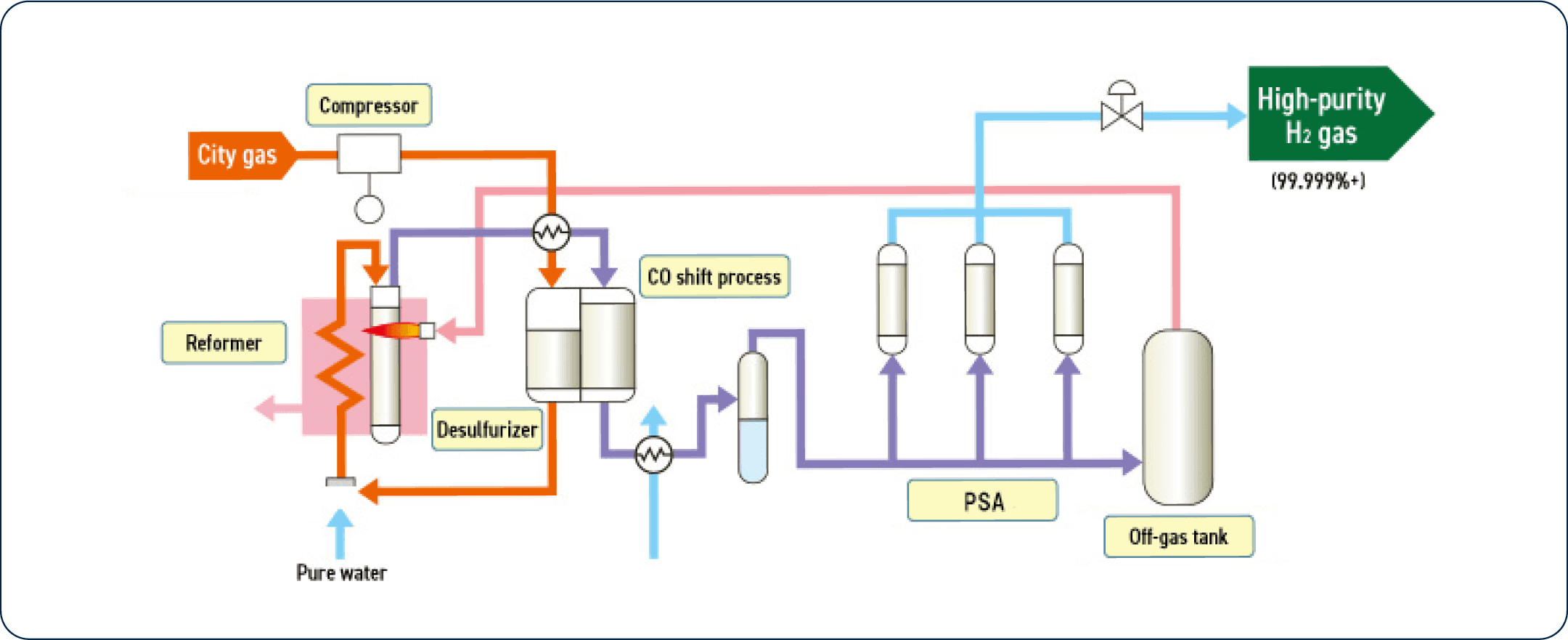

Process Flow
