From Paper to Navigation, Comfortable & Reliable Drawings.IsolationNavi™
Implement DX in drawing creation as well.
Enhance productivity and safety simultaneously.
In work sites dealing with utilities and industrial fluids such as gas, electricity, water, and chemicals; complex drawing-related tasks were generated each time piping work was performed. Previously, numerous printed drawings were laid out, manually colored, and annotated to identify the construction impact and block range. This process was time-consuming and labor-intensive, and it was prone to human error. 'IsolationNavi' leverages the power of a system to achieve DX in drawing creation, thereby enhancing productivity and safety.
Reduce labor in drawing creation by 85%, taking a step forward in eliminating human error.

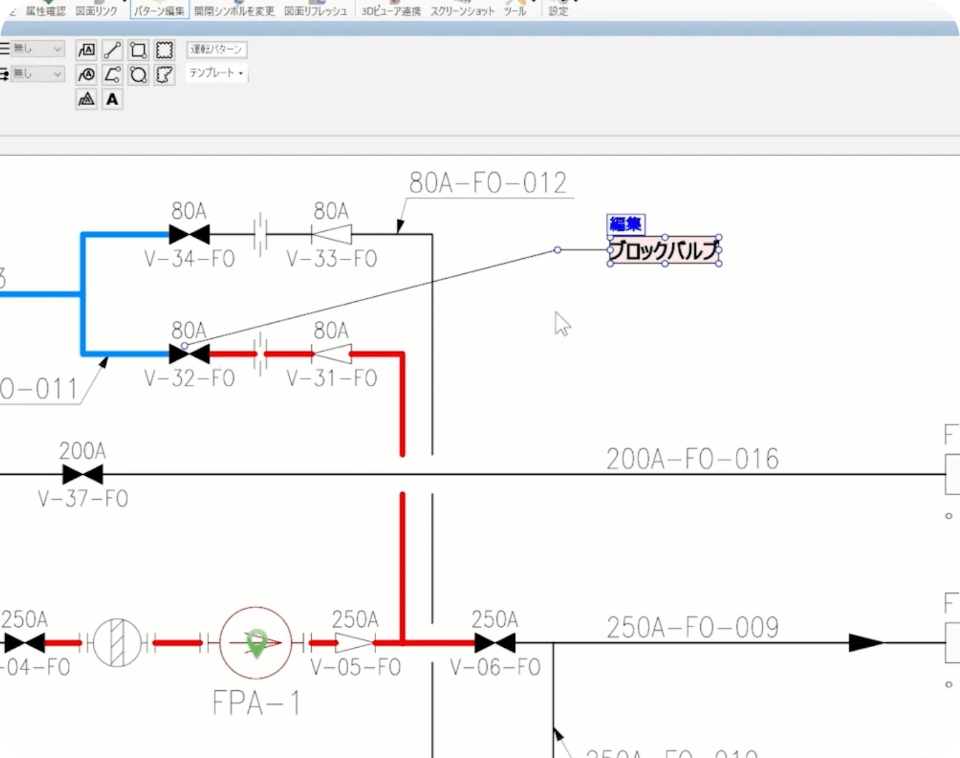

The real-time state of the fluid can be easily visualized. It is possible to color-code related pathways and display possible options for valves for operation, significantly contributing to time savings. Even when the scope of work is extensive and spans multiple drawings, each drawing is interconnected, allowing for an accurate visualization of the affected areas.
Please be sure to watch the video below for more information.
With intuitive operations and easy-to-use drawing creation features, we support the standardization and creation of high-quality work. Unlike drawings created with general-purpose software, our system specializes in creating drawings based on pipe connections, ensuring there are no omissions or errors.

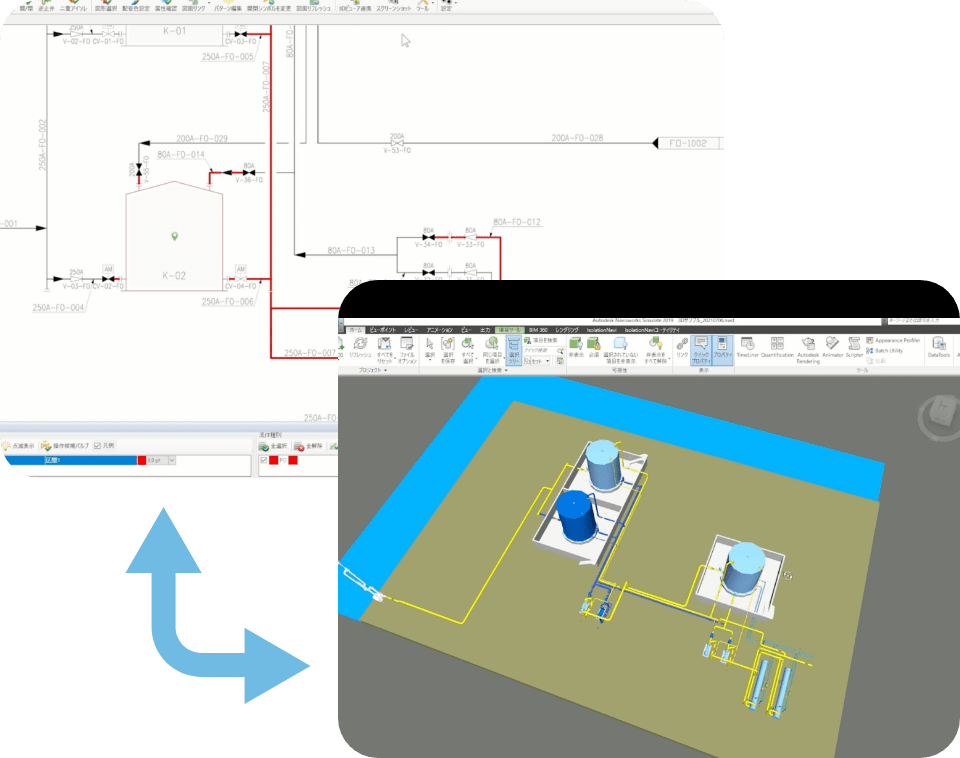

It is possible to perform a simulated on-site inspection by linking the layout created in IsolationNavi with 3D CAD. The 2D view allows for simple visualization of affected areas and connections, while the 3D view captures spatial relationships in three dimensions. By leveraging the strengths of each, human error is essentially eliminated.
The 3D site inspection functionality provides support to recovery planning in situations where access to the site is not possible due to disasters. Furthermore, by connecting the site and the designers' office and sharing drawing data in real-time on the system, a more rapid emergency response becomes possible.
‘IsolationNavi’ was originally developed to improve drawing-related tasks within Daigas Group. For example, at one location, approximately 400 construction projects are carried out annually, each necessitating the creation of drawings. We undertook the development with the desire to reduce this workload even slightly, and now we have succeeded in saving hundreds of hours per year. We would be delighted if this solution, which we have refined as users ourselves, can also be useful to as many people as possible. Furthermore, during development, we sought the cooperation of experienced designers and incorporated their expertise and into the system. We hope not only to improve work efficiency but also to contribute to the elimination of human error, the development of young talent, and the enhancement of business quality.
Takafumi Mizuochi, Daigas Gas and Power Solution
IsolationNavi is a registered trademark of Tokyo Electric Power Services CO., LTD. (TEPSCO) and is jointly developed by TEPSCO and Osaka Gas Co., Ltd.
